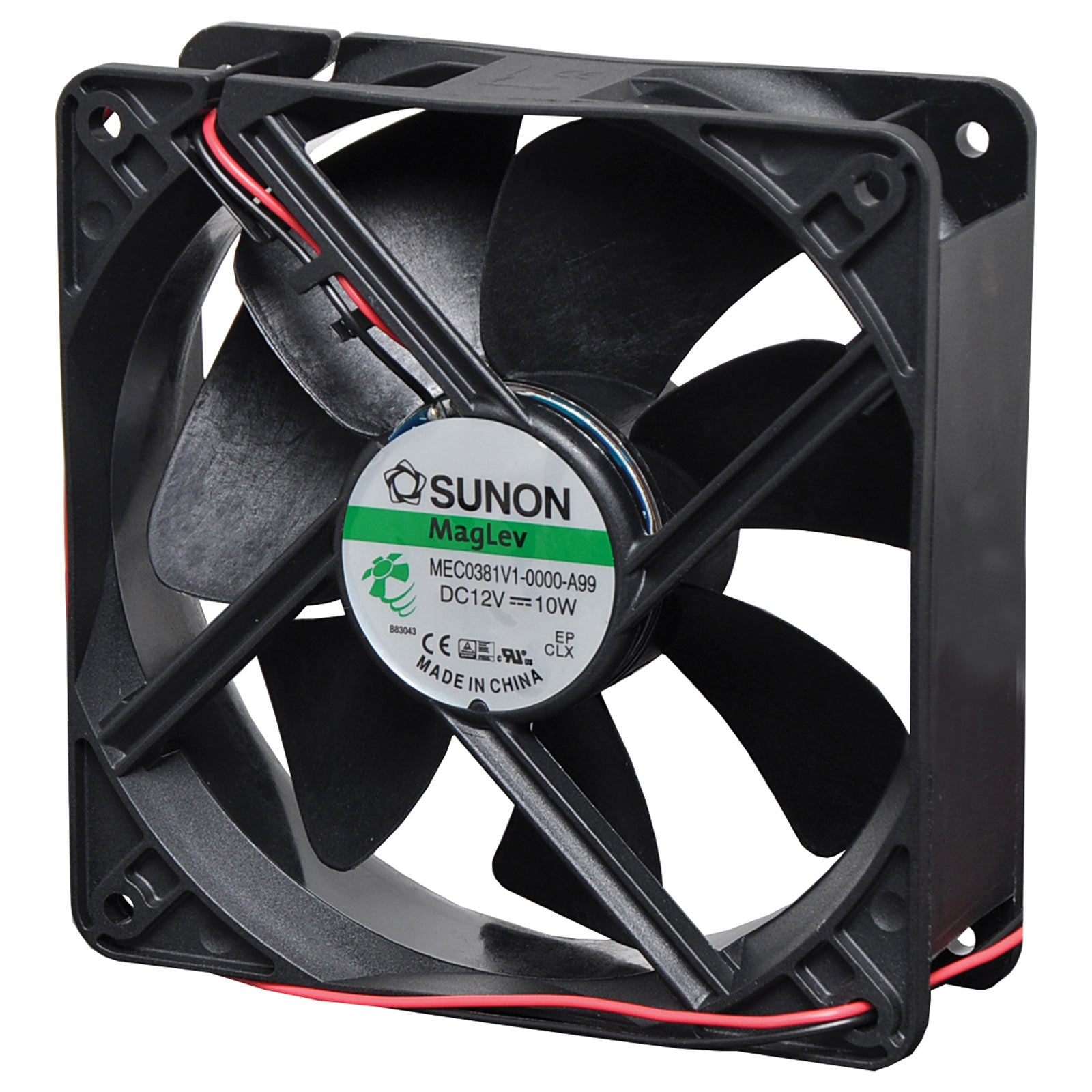

Sunon 120mm 12V DC Maglev Bearing Cooling Fan

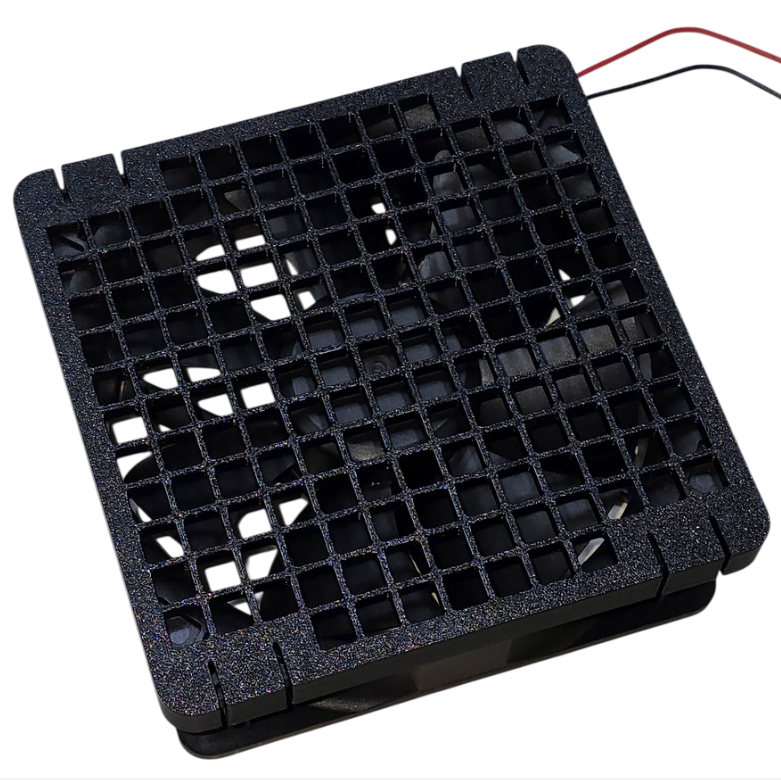

These fans are supplied when you purchase our Canopy Air Vents.

Unlike standard computer fans, these fans are thicker (38mm) and the high static pressure and high CFM are perfect for ventilation through filters.

Designed for long-life and minimal noise operation.

Sunon® fans are manufactured to a very high standard and hold CSA and UL listings.

SPECIFICATIONS:

Mechanical Characteristics

• Motor Design: 2 phases, 4 poles brushless DC motor
• Bearing System: Vapo bearing system
• Frame Material: Thermoplastic PBT of UL94V-0
• Blade Material: Thermoplastic PBT of UL94V-0
• Direction of Rotation: Counter clockwise viewed from the front of the fan blade
• Mounting Holes: 8x 4.3mm holes
• Weight: 218g
• Dimensions: 120 x 120 x 38mm

Electrical Characteristics

• Rated Voltage: 12V DC
• Rated Current: 833mA
• Rated Power Consumption: 10W
• Operating Voltage Range: 6~13.8V DC
• Starting Voltage: 6V DC (25°C Power On/Off)
• Operating Temperature: -10°C ~ +70°C
• Storage Temperature: -40°C ~ +70°C

Performance Characteristics

• Rated Speed: 3100 RPM ±10% at rated voltage
• Air Flow: 138 CFM
• Static Pressure: 0.36 Inch-H2O
• Noise Level: 48dB(A)
• Insulation Class: UL Class A
• Insulation Resistance: 10MΩ at 500V DC between internal stator and lead wire (+)
• Dielectric Strength: 500V AC for one minute or 600V AC for 2 seconds between housing and lead wire (+)
• Life Expectancy: 60,000 hours at 40°C, 65% RH, 90% CL
• Protection: Automatic restart, polarity protection
