Canopy Air Vent - Maximum Filtration

Overview

High quality air filtration with a lower air flow rate when compared to our maximum air flow vent.

Designed to ventilate your canopy, helping to increases the efficiency of fridges and accessories, lowering interior temperatures and reducing moisture and mold growth.

Now with upgraded 38mm high CFM high static pressure fan!

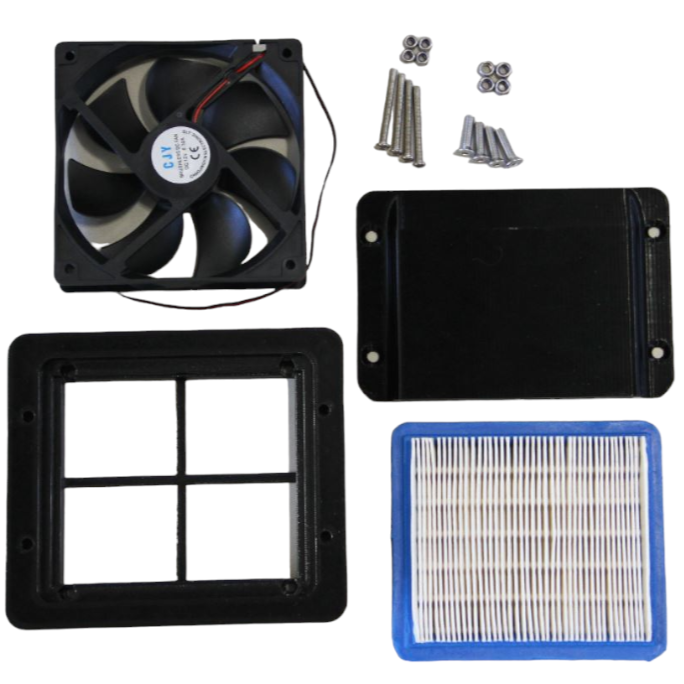

This product includes the mounting hardware, filter, bolts and cutting template with a 12V 120mm fan to increase air flow.

Recommendations and configurations

There are multiple configurations as the fan can be flipped to exhaust air:

1. Single Vent inlet with fan - Positive pressure
2. Double Vent, double fan, dual inlet - Significant positive pressure (recommended if your canopy seals are poor or have already installed a passive vent)

3. Double Vent, double fan, inlet and outlet - Neutral pressure (one fan flipped). This increases the air exchange rate inside the canopy, effectively replacing the hot air inside the canopy with fresh air from outside at a faster rate. This is good if you have airtight seals and no holes.

For larger canopies, it is recommended that 2x vents are installed in configuration 2 or 3 as above.

Positive pressure inside the canopy will reduce dust ingress as the air is pushed out of any air gap that would otherwise allow dust in.

If you still have questions, please message me on Facebook, Instagram or via email at stoicdesignsstore@outlook.com

Dimensions:

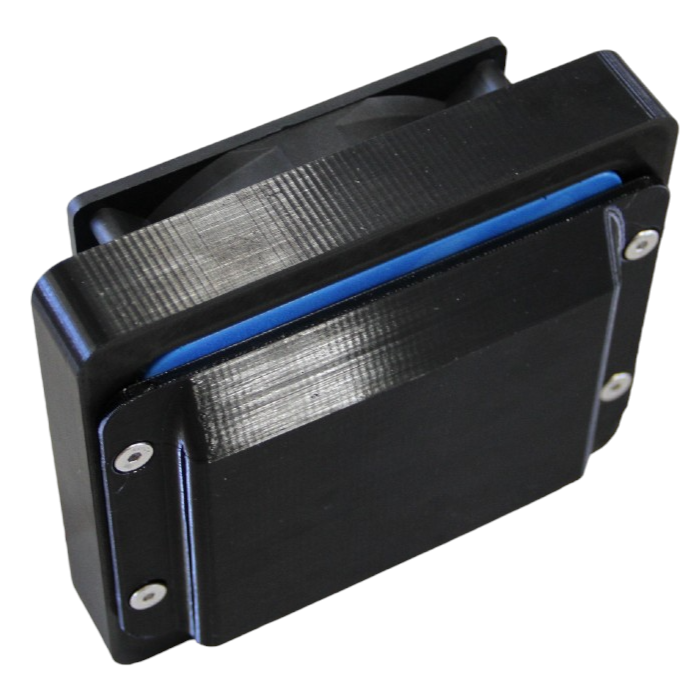

Internal mount: 160mm x 140mm x 25mm

External mount: 155mm x 115mm x 15mm

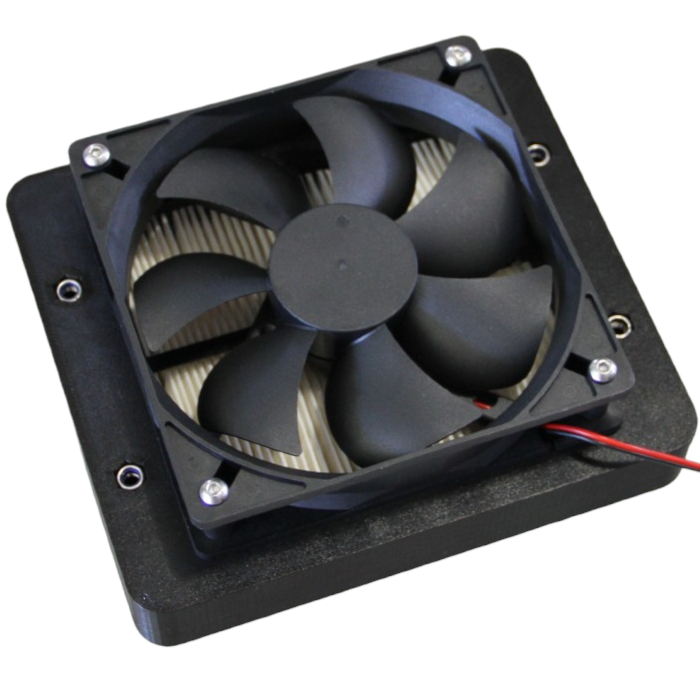

Fan: 120mm x 120mm x 38mm

Filter: Briggs and Stratton 491588S

Materials: UV Stable, PETG Plastic, stainless steel hardware.

Install:

1. Decide on your install location and scribe the rectangle cut out and the 4 main bolt holes on the mounting surface.

2. Drill all holes and cut out within marked areas.

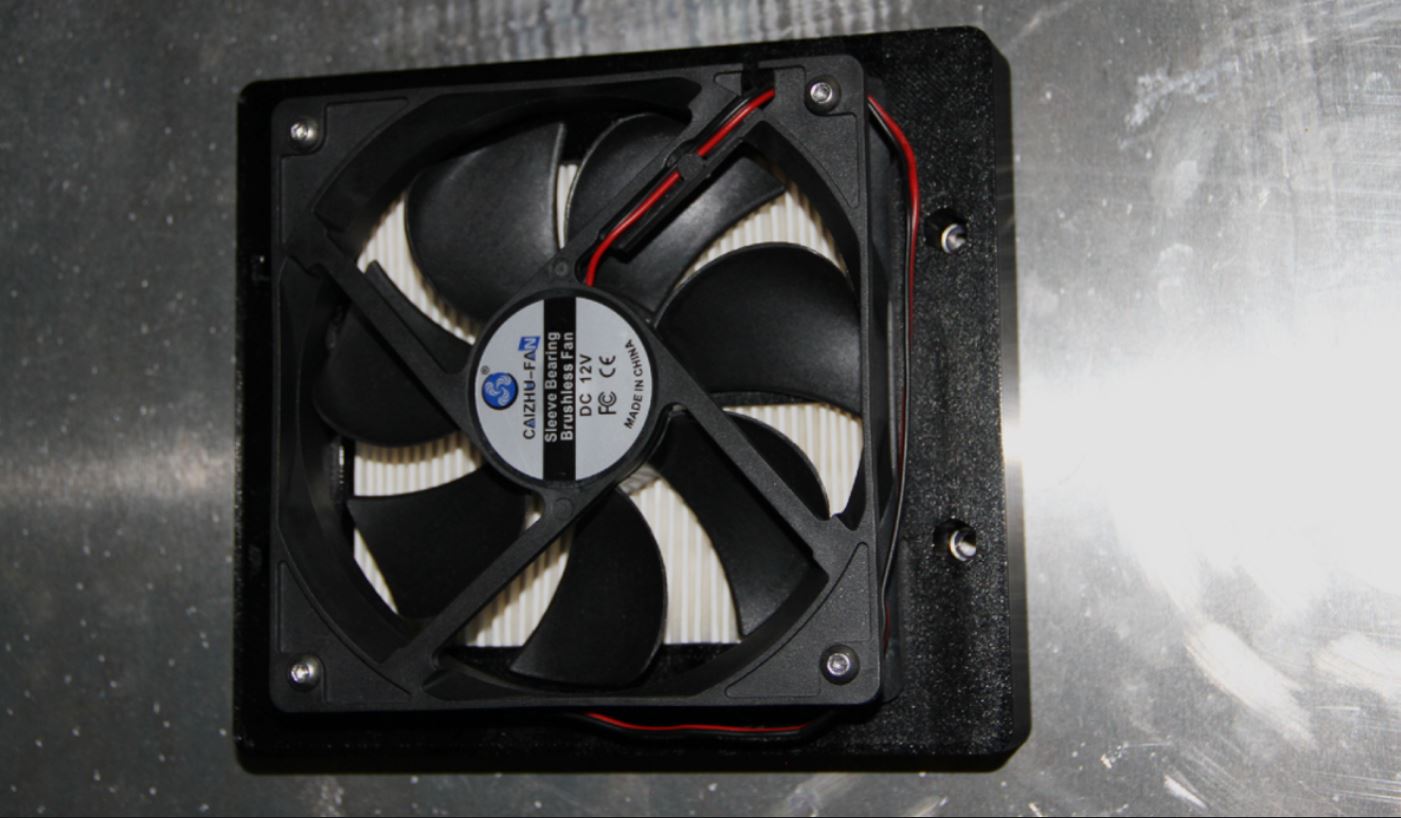

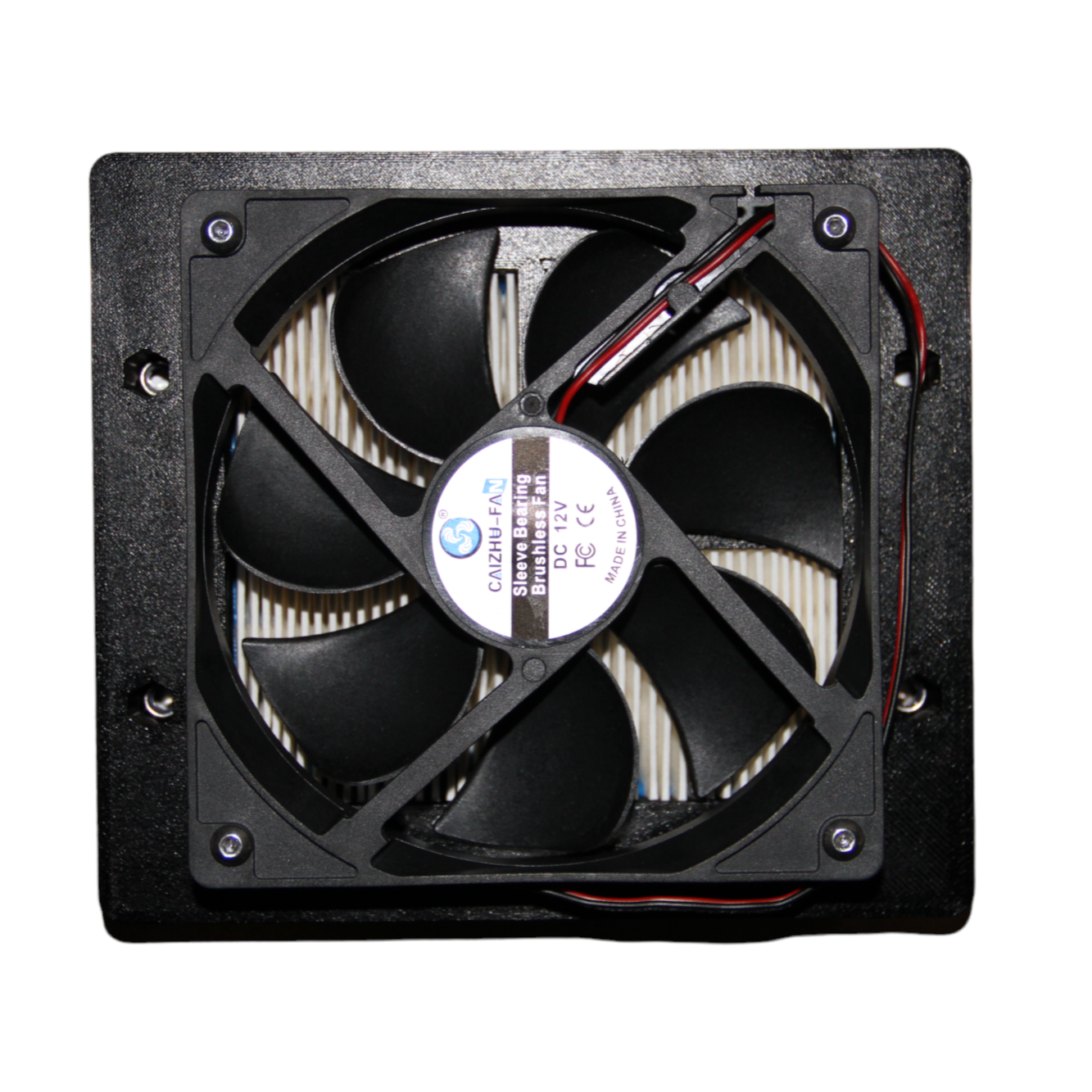

3. Fix the fan to the interior cover with the supplied bolts (pre-installed).

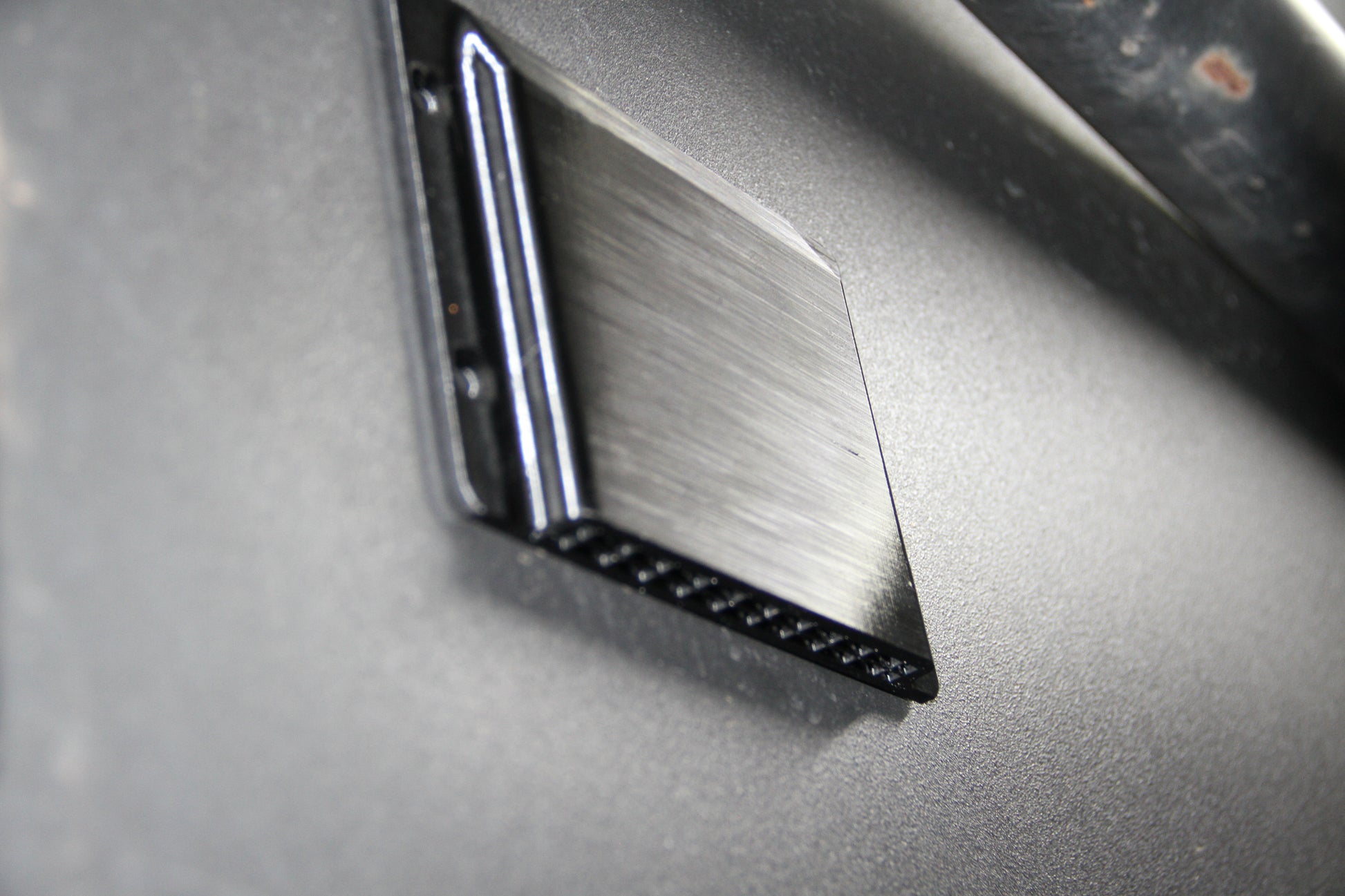

4. Install the external cover.

5. Place the filter into the interior mount (pre-installed), install the interior mount and install the M5 Bolts. Ensure not to overtighten. (The M5 screws need to be tight enough to seal the filter to the inside of the canopy, but not so tight that the plastic cracks).

6. Once installed, wire in the fan.

Note:

1. Do not over tighten bolts as the plastic will crack under significant load. Nylon Lock nuts so you can have confidence your mount wont rattle free.
2. This product is 3D printed and will have visible layer lines from the Manufacturing process. These can be sanded and painted, however, it is not required.

Fan Specifications:

Mechanical Characteristics

• Motor Design: 2 phases, 4 poles brushless DC motor
• Bearing System: Vapo bearing system
• Frame Material: Thermoplastic PBT of UL94V-0
• Blade Material: Thermoplastic PBT of UL94V-0
• Direction of Rotation: Counter clockwise viewed from the front of the fan blade
• Mounting Holes: 8x 4.3mm holes
• Weight: 218g
• Dimensions: 120 x 120 x 38mm

Electrical Characteristics

• Rated Voltage: 12V DC
• Rated Current: 833mA
• Rated Power Consumption: 10W
• Operating Voltage Range: 6~13.8V DC
• Starting Voltage: 6V DC (25°C Power On/Off)
• Operating Temperature: -10°C ~ +70°C
• Storage Temperature: -40°C ~ +70°C

Performance Characteristics

• Rated Speed: 3100 RPM ±10% at rated voltage
• Air Flow: 138 CFM
• Static Pressure: 0.36 Inch-H2O
• Noise Level: 48dB(A)
• Insulation Class: UL Class A
• Insulation Resistance: 10MΩ at 500V DC between internal stator and lead wire (+)
• Dielectric Strength: 500V AC for one minute or 600V AC for 2 seconds between housing and lead wire (+)
• Life Expectancy: 60,000 hours at 40°C, 65% RH, 90% CL
• Protection: Automatic restart, polarity protection
